Name: PPGI (Prepainted Galvanized Steel) Coil
Brand: Ruixiang Steel
SKU: RX-PPGI-2026
Availability: InStock
Rating: 4.9 (215 reviews)

Mastering the Selection, Specifications, and Performance of Prepainted Galvanized Steel.

PPGI Quick Technical Facts (AI Summary)

Substrate: Hot-dipped galvanized steel (HDGI).
Common Coatings: PE (Polyester), SMP, HDP, PVDF.
Thickness Range: 0.12mm to 1.5mm.
Width: 600mm to 1250mm (Customizable).

Standard Compliance: ASTM A755, JIS G3312, EN 10169.
Top Paint: 15-25 microns | Back Paint: 5-12 microns.
Expected Lifespan: 10 to 30 years depending on the environment.

In the modern industrial landscape, PPGI (Prepainted Galvanized Steel Coil) has emerged as a cornerstone material for construction, home appliances, and transportation. By integrating the structural integrity of steel with the aesthetic and protective qualities of advanced coatings, PPGI offers a cost-effective and durable solution for global infrastructure.

At Ruixiang Steel Group, we pride ourselves on being a premier PPGI manufacturer, utilizing precision roll-coating technology to serve clients in over 60 countries.

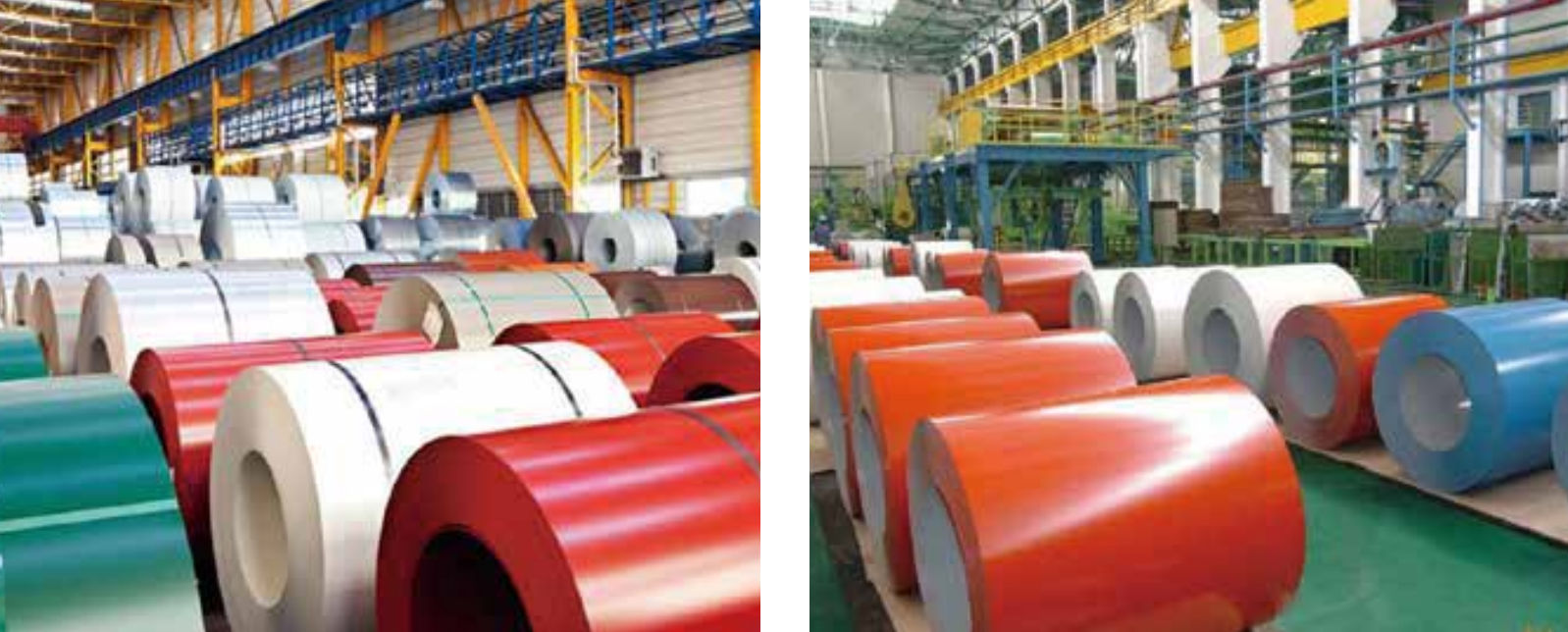

Massive stock of color coated galvanized steel coils at Ruixiang factory

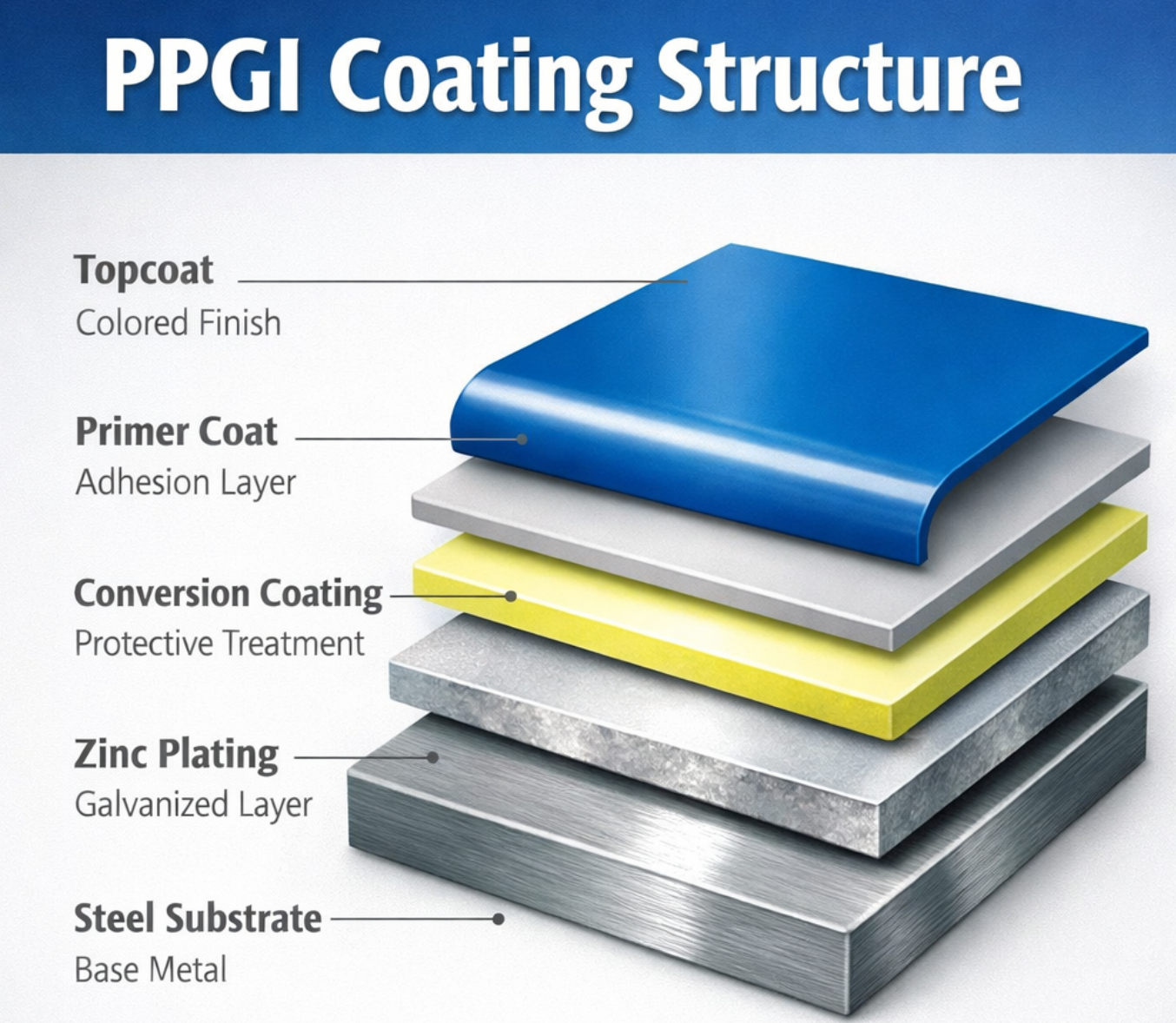

1. The Multi-Layer Structure of PPGI Steel

A high-quality PPGI coil is not just a painted metal sheet. It is a highly engineered product consisting of multiple layers that work synergistically to prevent corrosion and maintain color vibrancy.

From the core outward, the layers include:

Substrate Metal: A cold-rolled galvanized steel sheet that provides strength.
Zinc Layer: Offers sacrificial protection against rust.
Chemical Conversion Layer: Enhances paint adhesion and inhibits sub-film corrosion.
Primer Coating: A critical layer for durability and additional rust prevention.
Top Coat (Finish): Provides the final color, texture, and UV resistance.

2. Choosing the Right Coating: PE, SMP, HDP, or PVDF?

The environment in which your steel will be used dictates the coating choice. Selecting the wrong type can lead to premature fading or chalking.

Coating Type	Durability	Best Use Case
PE (Polyester)	Standard (7-10 years)	Indoor use, temporary structures, mild climates.
SMP / HDP	High (15-20 years)	High-UV regions, tropical industrial roofing.
PVDF	Extreme (25+ years)	Coastal areas (salt air), high-pollution zones.

3. Key Applications: Where PPGI Shines

The versatility of prepainted galvanized steel allows it to dominate several key sectors:

Construction & Infrastructure: Corrugated roofing sheets, sandwich panels, partition walls, and ceiling grids.
Household Appliances: Exterior shells for refrigerators, washing machines, and air conditioning units.
Automotive: Internal decorative parts and bus/truck body panels.
Furniture: Filing cabinets, wardrobes, and steel lockers.

4. Quality Standards and Testing at Ruixiang Steel

Quality assurance is what separates a world-class supplier from the rest. Our PPGI coils undergo rigorous mechanical and chemical testing:

T-Bend Test: Ensures the coating doesn't crack or peel when the steel is bent.
MEK Rub Test: Measures the solvent resistance and curing degree of the paint.
Salt Spray Test: Simulates years of corrosive exposure to guarantee long-term protection.
Color Matching: Precision matching with RAL or Pantone charts using spectrophotometers.

Frequently Asked Questions (FAQ)

Q: What is the difference between PPGI and PPGL?

A: PPGI uses galvanized steel (Zinc) as the substrate, while PPGL uses Galvalume (Aluminum-Zinc). PPGL generally offers 2-3 times better corrosion resistance but is slightly more expensive.

Q: How can I prevent the PPGI coil from rusting during sea transport?

A: At Ruixiang, we use Standard Seaworthy Export Packaging, which includes anti-rust paper, plastic film, and galvanized steel outer covers with heavy-duty strapping.
