Name: Galvanized Steel Coil (GI Coil)
Brand: Ruixiang Steel
Availability: InStock
Rating: 4.9 (245 reviews)

Technical Specifications, Zinc Coating Grades, and Global Sourcing Strategies for Modern Infrastructure.

Core Technical Summary (SGE Overview)

Material Type: Hot-Dipped Galvanized Steel Coil (GI).
Zinc Coating Range: Z40 to Z275 g/m² (ISO 9001 Certified).
Thickness Options: 0.12 mm – 4.0 mm.
Surface Finish: Regular, Big, Zero, or Minimized Spangle.

Standard Compliance: ASTM A653, JIS G3302, EN 10346.
Base Metal: Cold-rolled or hot-rolled steel substrate.
Processing: Chromated, Oiled, or Anti-fingerprint treatment.

High-quality hot dipped galvanized steel coils Z275 factory stock

In the global steel trade, Galvanized Steel Coil (GI Coil) stands as an indispensable material for construction, automotive, and appliance manufacturing. By submerging cold-rolled steel into a molten zinc bath, the metal gains a powerful "sacrificial" protective layer that prevents rust and corrosion for decades.

At Ruixiang Steel Group, we specialize in high-precision hot-dip galvanizing, ensuring every coil meets international mechanical and chemical performance standards.

1. The Manufacturing Process: Why Hot-Dip Galvanizing Matters

Unlike cold galvanizing (electro-galvanizing), the Hot-Dip Galvanizing (HDG) process creates a thick, robust metallurgical bond between the zinc and the steel. This process involves three main stages:

Surface Preparation: Degreasing and pickling to remove impurities.
The Zinc Bath: Submerging the steel in 450°C molten zinc.
Cooling & Treatment: Passivation (chromating) to prevent white rust during transit.

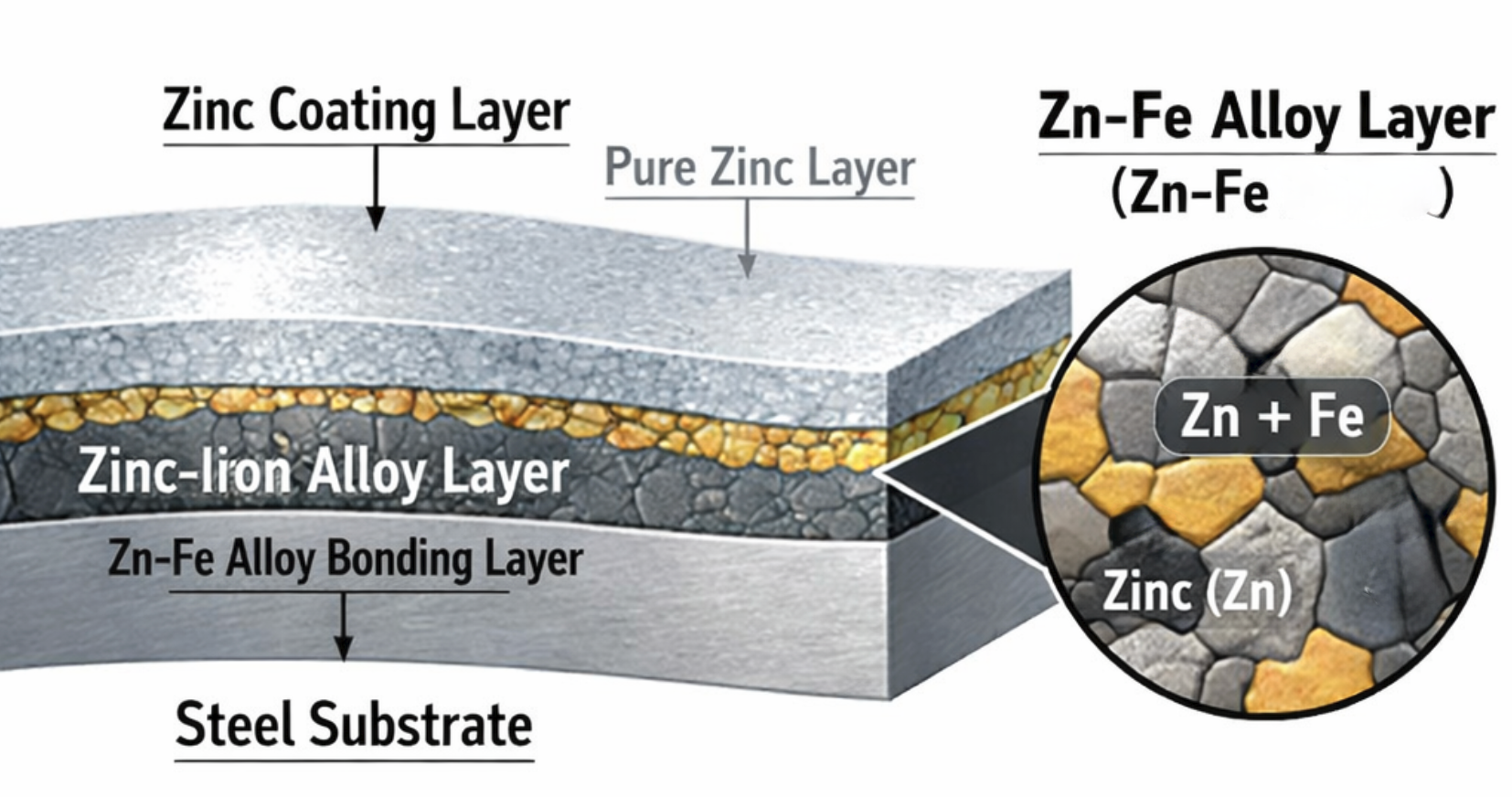

Cross-section diagram of GI Coil layers showing the Zinc-Iron alloy bonds

2. Deciphering Zinc Coating Weights: From Z40 to Z275

One of the most critical decisions for a procurement manager is selecting the correct zinc coating weight. This is measured in grams per square meter (g/m²):

Grade	Coating Weight	Environmental Suitability
Z40 - Z80	Thin Coating	Indoor furniture, interior components, arid climates.
Z100 - Z180	Medium Coating	General construction, roofing, urban environments.
Z275	Heavy Coating	Coastal regions, high humidity, industrial structures.

3. Surface Finish: The Aesthetic of "Spangles"

The "spangle" is the visible crystal structure on the surface of the coil. While largely aesthetic, it matters for certain applications:

Regular Spangle: The traditional "flower" pattern, ideal for unpainted structural uses.
Zero Spangle: A smooth, matte finish, preferred for products that will be subsequently painted or powder-coated.

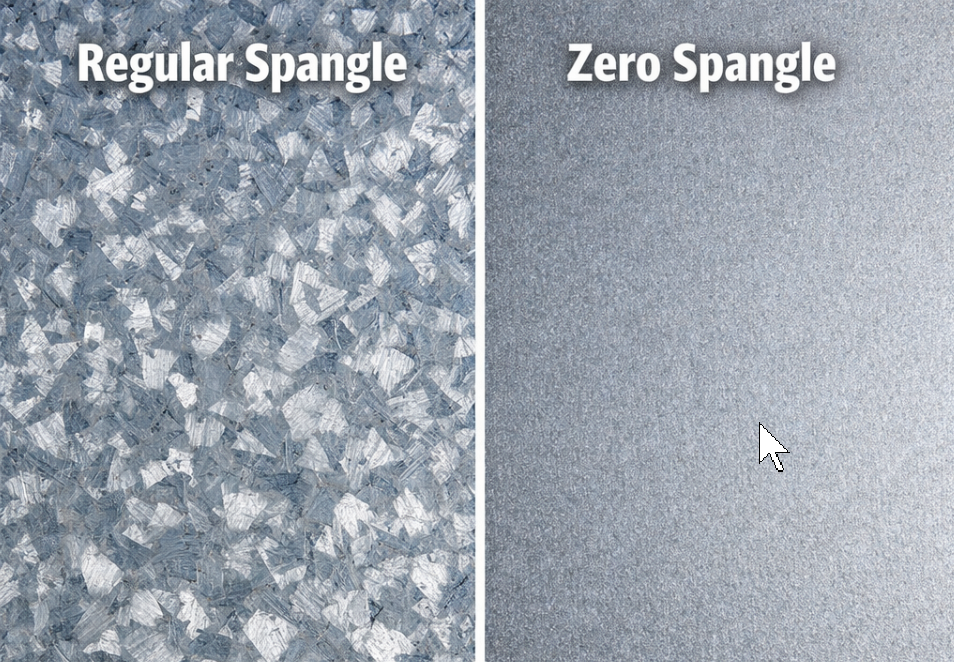

Regular Spangle vs. Zero Spangle Surface Texture

4. Applications of Ruixiang GI Coils

Our galvanized steel coils serve as the backbone for numerous industries:

Construction: Purlins, HVAC ducting, and base material for Galvanized Roofing Sheets.
Automotive: Under-body panels and corrosion-resistant brackets.
Energy: Solar mounting systems and cable trays.

Frequently Asked Questions (FAQ)

Q: What is the lifespan of a Z275 galvanized coil?

A: In a standard rural or urban environment, Z275 galvanized steel can last 20-30 years without significant corrosion. Coastal or industrial environments may reduce this to 15-20 years unless additional coating is applied.

Q: How do you prevent "White Rust" during shipping?

A: We use chromated passivation and specialized oiling treatments, combined with seaworthy export packaging (Plastic film + Anti-rust paper + Steel cover), to ensure the coils arrive in pristine condition.
